Fully Automatic 70 Carton Per Minute Stable Side-Feed Wrap Around Case Packer for Medical Applications

Détails de produit

Capacité:

20-100 paquets/minute

Pouvoir:

380V 50Hz

Taille de conteneur:

100g-3kg

Capacité de production:

80 emballages par minute

Longueur de carton:

150-420 mm

Largeur de carton:

130 à 350 mm

Hauteur du carton:

100-335mm

diamètre de produit:

φ48-106mm

Hauteur du produit:

95-330mm

Taille de l'équipement:

15850×4050×2150mm

Poids de l'équipement:

11000 kg

Pression d'air de fonctionnement:

6BAR

Consommation d'air:

160 L/min Max.

Tension de travail:

380 V AC 50 Hz

Puissance installée:

30 kW

Mettre en évidence:

70 Carton Per Minute Wrap Around Case Packer

Stable Side-Feed Carton Wrapper

Medical Wrap Around Packer

Conditions de paiement et d'expédition

Quantité de commande min

Prix

60000

Produits connexes

60 paquets par minute, entièrement enveloppés, enroulement sans palette, encaisseuse pour boissons et aliments

Obtenez le meilleur prix

Encaisseuse automatique d'emballage carton enveloppant avec une vitesse de 25 caisses/minute, construction en acier inoxydable 304 et alimentation AC 380V

Obtenez le meilleur prix

Emballeuse automatique d'étuis enveloppants certifiée CE ISO avec Schneider Electrics pour des performances stables en emballage de cartons

Obtenez le meilleur prix

Stable Performance CE ISO Certified Wrap Around Case Packer with Touch Screen Control for Bottles Jars Cans

Obtenez le meilleur prix

Contactez-nous

+86 13030636622

marketing@pyspc.com

Contact maintenant

Description de produit

Fully Automatic 70 Carton Per Minute Stable Side-Feed Carton Wrapper

Product Overview

This fully automatic carton wrapper is designed for high-speed secondary packaging of various container types including PET bottles, glass bottles, and metal cans, with a capacity range of 35-100 packs per minute.

Key Features

Applicable to multiple bottle types: square, flat, and round bottles
Versatile packaging machine that can replace cartoning machines and ancillary equipment
Also known as: Carton Packer, Case Packer, Wrap Around Packer, and various other industry names

Main Components Configuration

Component	Brand
PLC	Inovance, China
Servo motor and control system	Inovance, China
Upper configuration software	Ab Optix
Frequency converter	Inovance, China
Proximity electronic switch	SICK or equivalent brand
Terminal	Phoenix

Equipment Specifications

Parameter	Value
Production capacity	80 packs/minute (varies by bottle type and packaging method)
Carton dimensions after forming (mm)	Length: 150-420, Width: 130-350, Height: 100-335
Packing specifications	3×4, 3×5, 4×6, 2×3, 2×4 and other configurations
Product diameter range	48mm-106mm
Product height range	95mm-330mm
Equipment dimensions (mm)	15850×4050×2150 (requires 3000mm clearance height)
Applicable container types	Cans, glass bottles, PET containers
Power requirements	380V AC 50HZ; 30KW installed power, 20KW operating power

Carton Folding Process

Inner flap forming process flow

Outer tongue forming process flow

Equipment Components and Process Flow

The machine consists of multiple integrated systems including bottle feeding conveyor, pressure control module, product grouping mechanism, cardboard handling system, and forming sections.

Servo Mechanism Distribution

Mechanism	Number of Servos
Upper forming	2
Lower forming	2
Folding on both sides	4
Top capping	1
Cardboard transfer	2

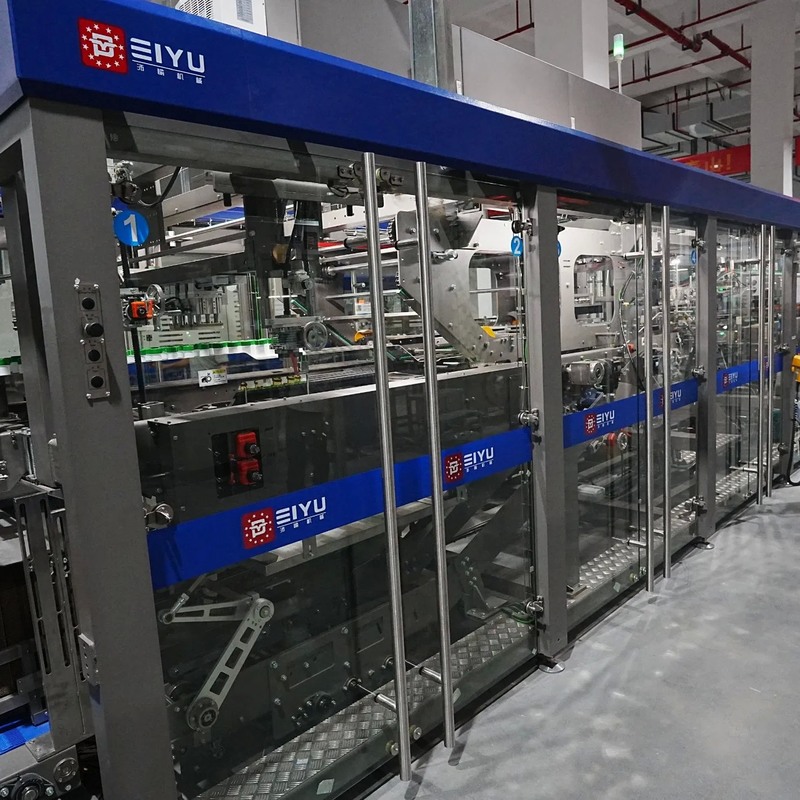

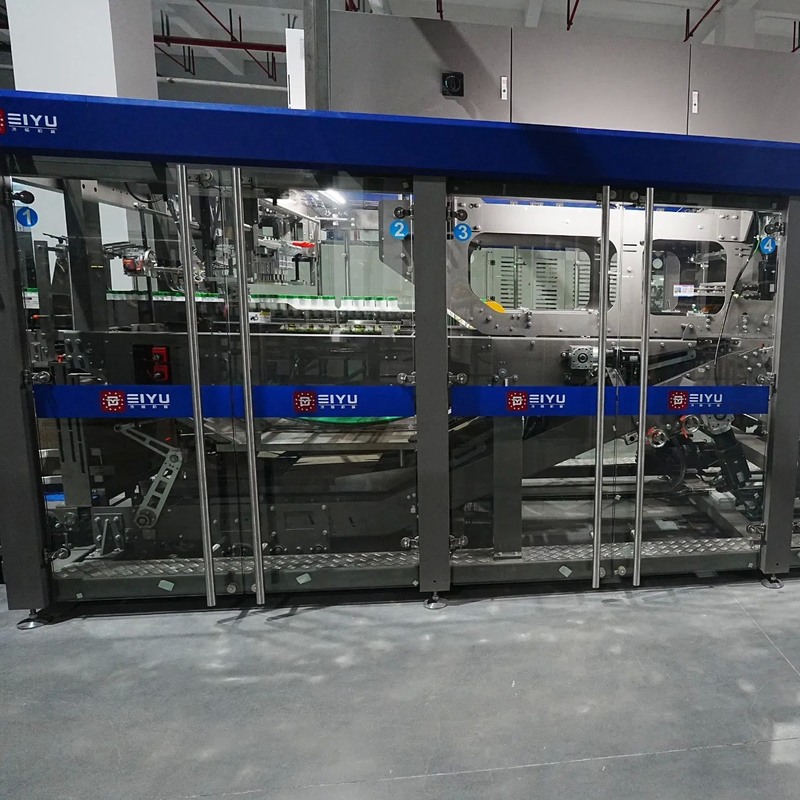

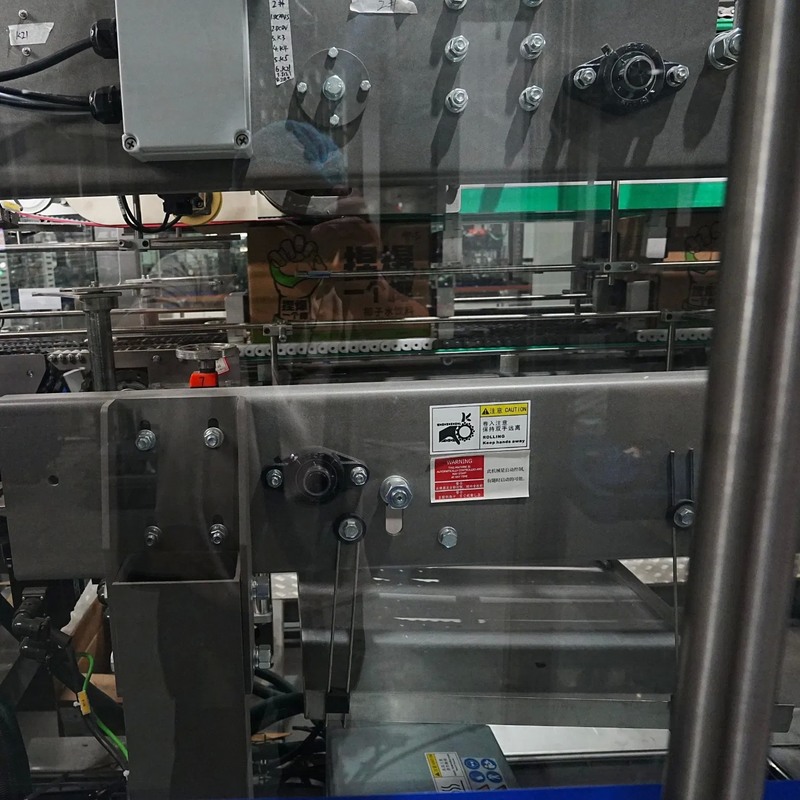

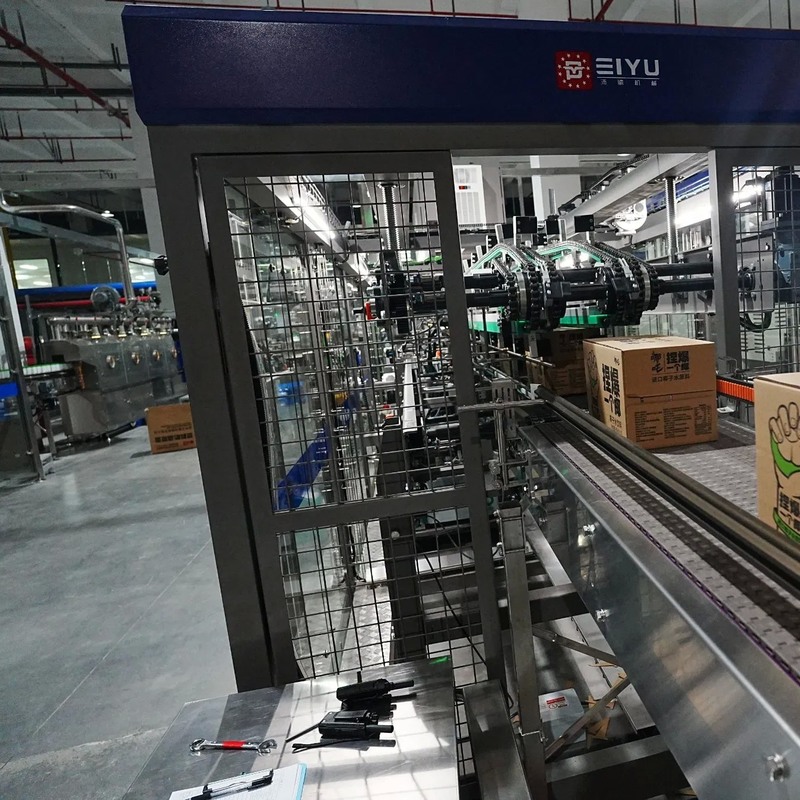

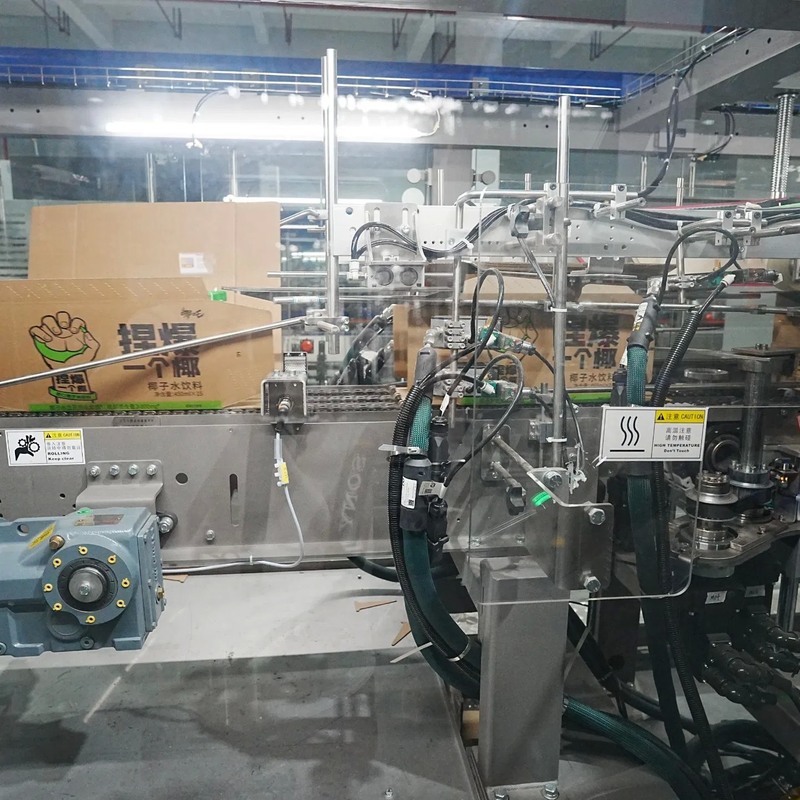

Product Images

Manufacturer Information

Peiyu Enterprise owns multiple subsidiaries specializing in packaging technology and machinery manufacturing, offering complete intelligent equipment solutions for liquid and solid product companies worldwide.

Our product range includes various packaging machinery for beverages, dairy products, water, condiments, alcohol, oil, cosmetics, and pharmaceutical industries.

We maintain partnerships with major international brands and our products are exported to North America, South America, Africa, Europe, and the Middle East.

Certifications

Production Facility

Electrical Components
