Fully Automatic Wrap Around Case Packer 18kw for Beverage Production Line with Customized Bottles and PET/PE/PP Bottles

Détails de produit

Capacité:

20-100 paquets/minute

Pouvoir:

380V 50Hz

Taille de conteneur:

100g-3kg

Capacité de production:

80 emballages par minute

Longueur de carton:

150-420 mm

Largeur de carton:

130 à 350 mm

Hauteur du carton:

100-335mm

diamètre de produit:

48-106mm

Hauteur du produit:

95-330mm

Taille de l'équipement:

15850mm×4050mm×2150mm

Poids de l'équipement:

11000 kg

Pression d'air de fonctionnement:

6BAR

Consommation d'air:

160 L/min Max.

Tension de travail:

380 V AC 50 Hz

Puissance installée:

30 kW

Mettre en évidence:

Customized Wrap Around Case Packer

Bottles Case Packing Machine

PET/PE/PP Bottles Carton Packer

Conditions de paiement et d'expédition

Quantité de commande min

Prix

60000

Produits connexes

60 paquets par minute, entièrement enveloppés, enroulement sans palette, encaisseuse pour boissons et aliments

Obtenez le meilleur prix

Encaisseuse automatique d'emballage carton enveloppant avec une vitesse de 25 caisses/minute, construction en acier inoxydable 304 et alimentation AC 380V

Obtenez le meilleur prix

Emballeuse automatique d'étuis enveloppants certifiée CE ISO avec Schneider Electrics pour des performances stables en emballage de cartons

Obtenez le meilleur prix

Stable Performance CE ISO Certified Wrap Around Case Packer with Touch Screen Control for Bottles Jars Cans

Obtenez le meilleur prix

Contactez-nous

+86 13030636622

marketing@pyspc.com

Contact maintenant

Description de produit

Fully Automatic Wrap Around Case Packer 18kw for Beverage Production Line

Product Overview

This fully automatic wrap around case packer is designed for secondary packaging of PET bottles, glass bottles, and metal cans in beverage production lines. It offers high-speed packaging with a capacity range of 35-100 packs per minute, depending on packaging specifications.

Key Features

Applicable to various bottle types: square, flat, and round bottles
Replaces cartoning machines and ancillary equipment
Multiple packaging configurations: 3×4, 3×5, 4×6, 2×3, 2×4, etc.
Also known as: Carton Packer, Case Packer, Wrap Around Packer, Packaging Machine

Main Components Configuration

Component	Brand
PLC	Inovance, China
Servo motor and control system	Inovance, China
Upper configuration software	Ab Optix
Frequency converter	Inovance, China
Proximity electronic switch	SICK or equivalent brand
Terminal	Phoenix

Technical Specifications

Parameter	Value
Production capacity	80 packs/minute (varies by bottle type)
Carton dimensions (L×W×H)	150-420mm × 130-350mm × 100-335mm
Product diameter range	φ48mm-106mm
Product height range	95mm-330mm
Equipment dimensions (L×W×H)	15850mm × 4050mm × 2150mm
Equipment weight	11000Kg
Operating power	20KW (30KW installed)
Working voltage	380V AC 50HZ; 24V DC/AC

Process Flow Diagrams

Equipment Components and Process Description

The equipment consists of rack, bottle feeding conveyor, pressure control module, product grouping system, bottle pushing parts, cardboard handling system, forming sections, and control systems. The automated process includes cardboard separation, product grouping, combined forming, and wrapping completion.

Servo Mechanism Configuration

Mechanism	Number of Servos
Upper forming	2
Lower forming	2
Folding on both sides	4
Cardboard lifting and exchange	3

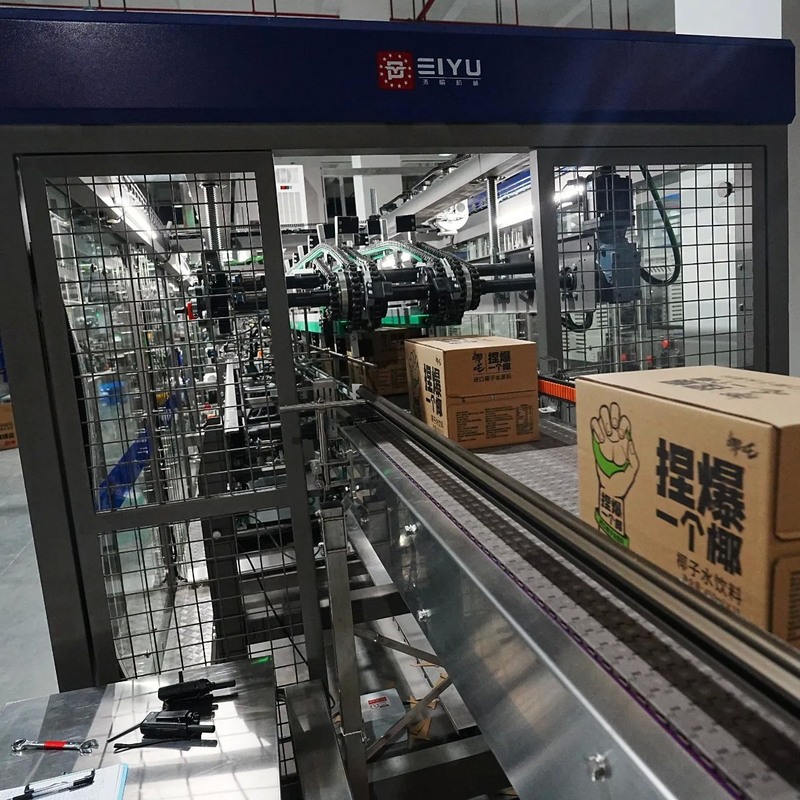

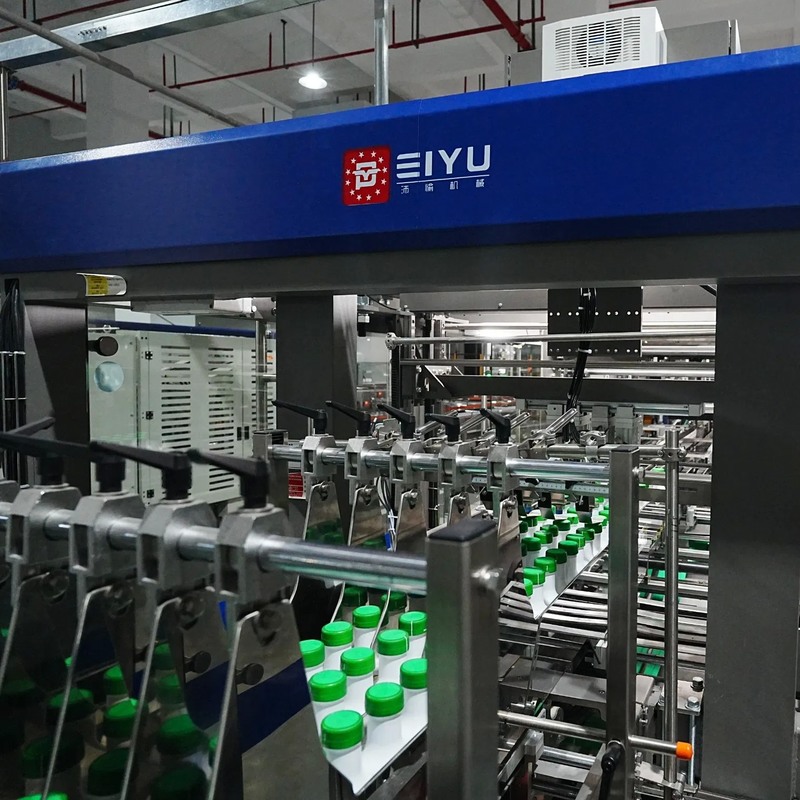

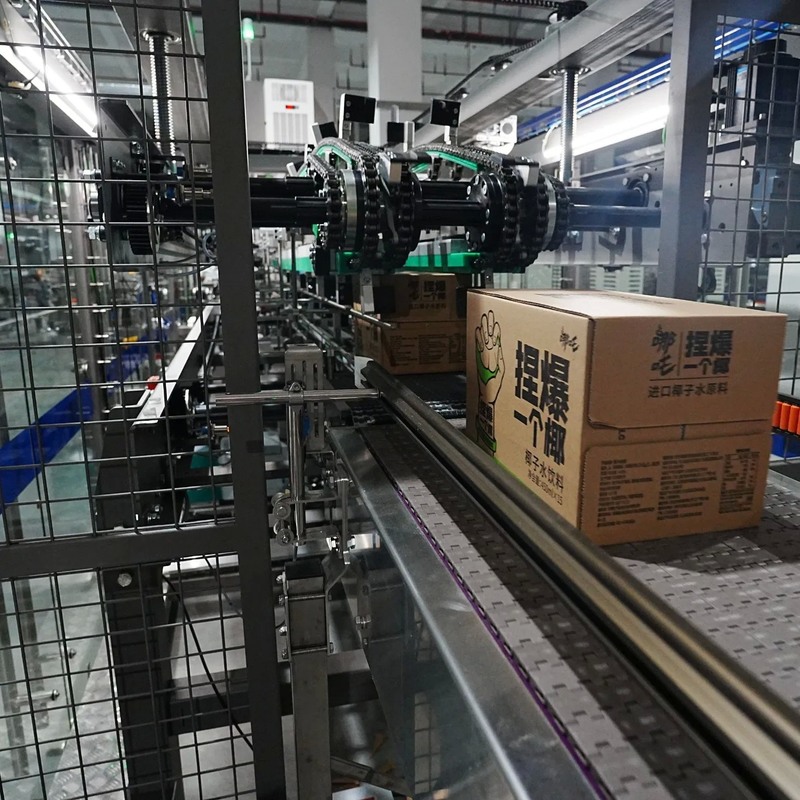

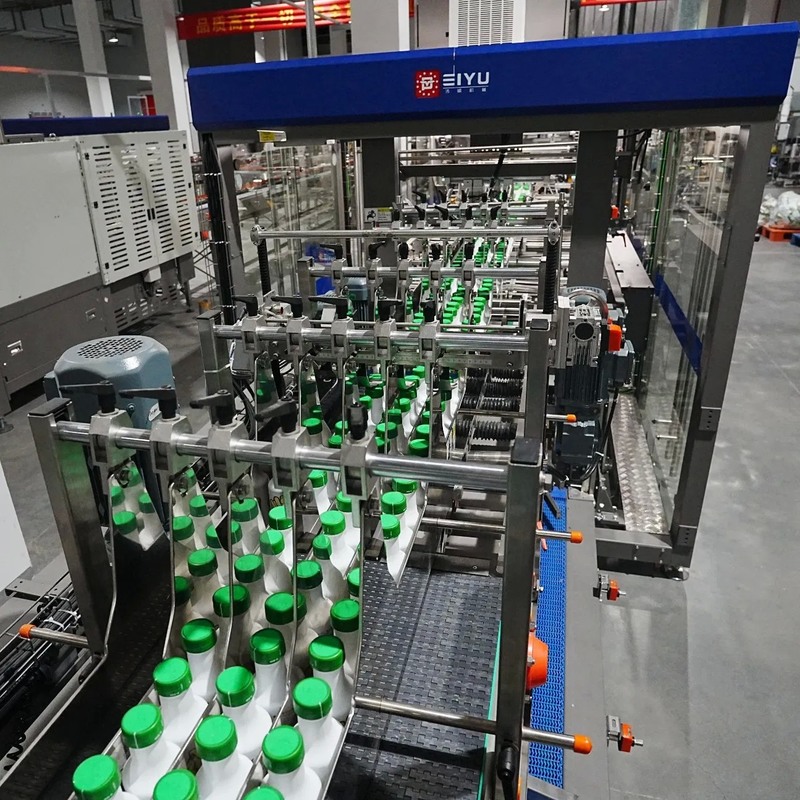

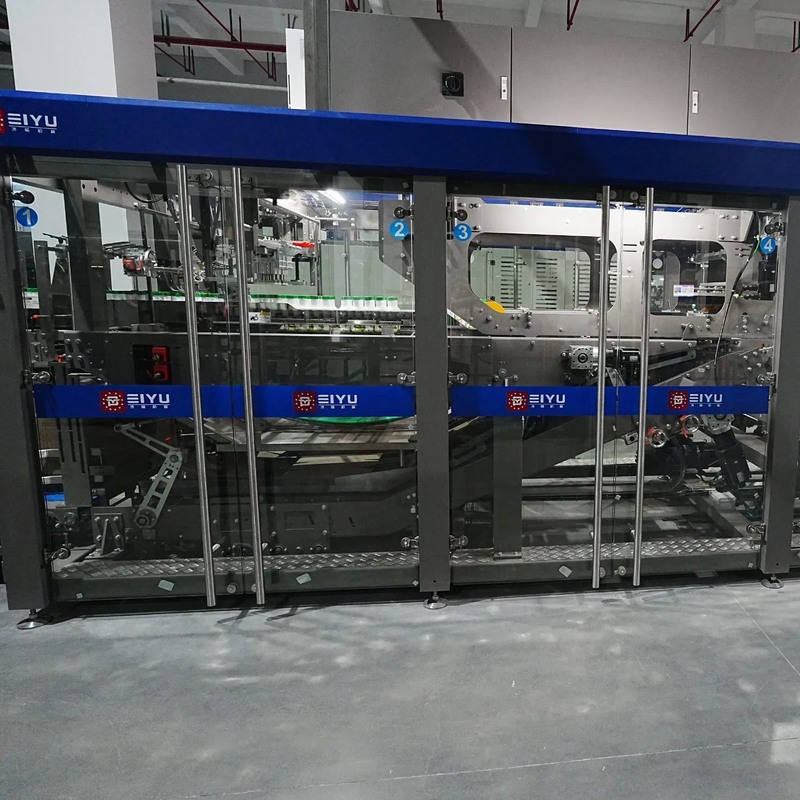

Product Images

Manufacturer Information

Peiyu Enterprise owns multiple manufacturing and technology companies in China, providing complete intelligent equipment solutions for global liquid and solid product companies. With extensive experience and advanced manufacturing facilities, we serve major brands worldwide and export to North America, South America, Africa, Europe, and the Middle East.

Certifications

Workshop and Components
